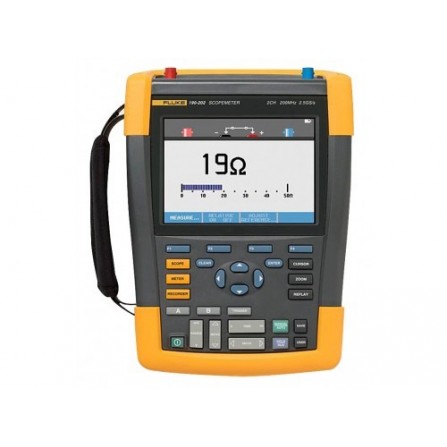

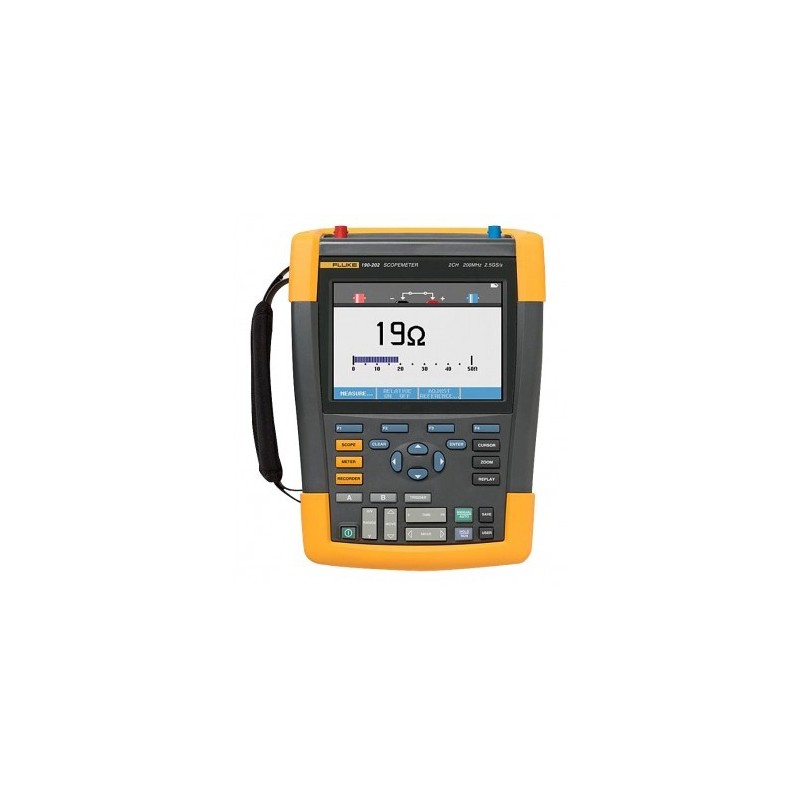

Máy hiện sóng Fluke 190-102

ScopeMeter 190 Series II

ScopeMeter 120 Series

Fluke-190-204

Fluke-190-104

Fluke 190-202

Fluke 190-102

Fluke 190-062

Fluke 125

Fluke 124

Fluke 123

Bandwidth

200 MHz

100 MHz

200 MHz

100 MHz

60 MHz

40 MHz

40 MHz

20 MHz

Max.sample rate

2.5 GS/s

1.25 GS/s

2.5 GS/s

1.25 GS/s

625 MS/s

25 MS/s

Inputs

4 Isolated

2 + DMM, Isolated

2 Scope, 2 DMM

Display

"153 mm full-color LCD

102 mm monochrome LCD

Max Floating Voltage

CAT III 1000V/CAT IV 600V

600V CAT III

Max Probe Voltage

CAT III 1000V/CAT IV 600V

600V CAT III using STL120

Input Isolation

"All inputs fully insulated from each other and from ground

Common ground with self recovering input protection

Triggering

Connect-and-View®, Free Run, Single Shot, Edge

Advanced Trigger

Delay, N-Cycle, Dual Slope, Video Frame, Video line, Selectable pulse width and External

Video, External using Optional ITP120 Probe

Display Modes

Persistence, Pass/Fail Compare, Envelope

—

Recording Modes

Waveform ScopeRecord ™ , Measurement TrendPlot™, Automatic 100 Screen capture replay

Measurement TrendPlot™

Bus Health Test

—

Yes

—

FFT

Windowing: Auto, Hamming, Hanning or None

Harmonics (33rd)

Power Measurements

P (W), VA, VAR, PF, Vpwm

P (W), VA, VAR, PF, Vpwm

—

Scope Measurements

7 cursors measurements, 30 automatic measurements, Automatic Vrms and watts measurement on cursor limited part of waveform

Cursors + 26 automatic meas.

26 auto meas.

Waveform Mathematics

A + B, A – B, A x B, A versus B (X-Y-mode, giving Lissajous diagrams)

—

True RMS multimeter

999 Count Voltmeter

5000 counts, Volts, Amps, Ohms, Continuity, Diode, Temp

Dual full featured 5000 count DMM

Interface

USB Host memory device port (2 GB), USB Device Port

Safety certified (EN61010-1)

CAT III 1000V/CAT IV 600V

600V CAT III (instrument and included accessories)

Battery (installed)

7 Hr Li-Ion (BP291)

4 Hr Li-Ion (BP290) or (8 Hr with Optional BP291)

7 hr NiMH (BP120MH)

Size, Weight

10.4 in x 7.5 in x 2.8 in, 4.8 lbs
